FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reset All
Apply All
Results:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E3M0060065D60M 650V SIC AUTOMOTIVE MOSFET Wolfspeed, Inc. |
343 | - |
|
Datasheet |
- | TO-247-3 | Tube | Last Time Buy | N-Channel | SiCFET (Silicon Carbide) | 650 V | 37A (Tc) | 15V | 79mOhm @ 13.2A, 15V | 3.6V @ 3.6mA | 46 nC @ 15 V | +19V, -8V | 1170 pF @ 600 V | - | 131W (Tc) | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
C3M0075120D-A75M 1200V 175C SIC FET Wolfspeed, Inc. |
379 | - |
|
Datasheet |
C3M™ | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 32A (Tc) | 15V | 90mOhm @ 20A, 15V | 3.6V @ 5mA | 54 nC @ 15 V | +15V, -4V | 1390 pF @ 1000 V | - | 136W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|

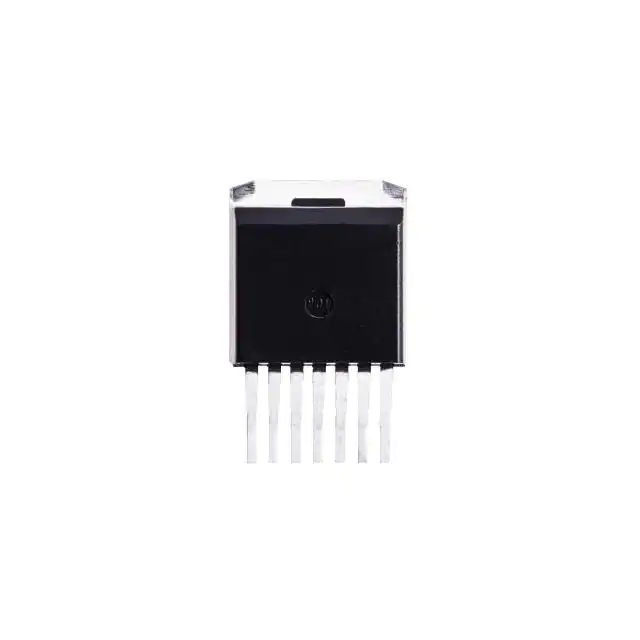

C3M0040120J1-TR1200V 40 M SIC MOSFET Wolfspeed, Inc. |
1,382 | - |
|
Datasheet |
C3M™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 64A (Tc) | 15V | 53.5mOhm @ 33.3A, 15V | 3.6V @ 9.2mA | 94 nC @ 15 V | +15V, -4V | 2900 pF @ 1000 V | - | 272W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
|
C3M0350120J-TRSIC, MOSFET, 350M,1200V, TO-263- Wolfspeed, Inc. |
777 | - |
|
Datasheet |
C3M™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 7.2A (Tc) | 15V | 455mOhm @ 3.6A, 15V | 3.6V @ 1mA | 13 nC @ 15 V | +15V, -4V | 345 pF @ 1000 V | - | 40.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
|
E4M0060075K1MOSFETS AUTOMOTIVE 126W 3.8V NC Wolfspeed, Inc. |
440 | - |
|
Datasheet |
E | TO-247-4 | Bulk | Active | N-Channel | SiCFET (Silicon Carbide) | 750 V | 35A (Tc) | 15V | 78mOhm @ 13.4A, 15V | 3.8V @ 3.67mA | 52 nC @ 15 V | +19V, -8V | 1203 pF @ 500 V | - | 126W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-4L |
|
|
E3M0160120J2-TR160m 1200V SiC FET, TO-263-7 XL Wolfspeed, Inc. |
763 | - |
|
Datasheet |
E | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 18A (Tc) | 15V | 208mOhm @ 8.5A, 15V | 3.8V @ 2.33mA | 28 nC @ 15 V | +19V, -8V | 730 pF @ 1000 V | - | 104W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263-7 |
|
|
C3M0120065J-TRSIC, MOSFET, 120M, 650V, TO-263- Wolfspeed, Inc. |
1,590 | - |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Last Time Buy | N-Channel | SiCFET (Silicon Carbide) | 650 V | 21A (Tc) | 15V | 157mOhm @ 6.76A, 15V | 3.6V @ 1.86mA | 26 nC @ 15 V | +19V, -8V | 640 pF @ 400 V | - | 86W (Tc) | -40°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
|
C3M0060075K1SICFET N-CH 750V 35A TO247 Wolfspeed, Inc. |
389 | - |
|
Datasheet |
- | TO-247-4 | Bulk | Active | N-Channel | SiCFET (Silicon Carbide) | 750 V | 35A (Tc) | 15V | 78mOhm @ 13.4A, 15V | 3.8V @ 3.67mA | 52 nC @ 15 V | -8V, +19V | 1203 pF @ 500 V | - | 126W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
|
|
C3M0160120J-TRSIC, MOSFET, 160M, 1200V, TO-263 Wolfspeed, Inc. |
300 | - |
|
Datasheet |
C3M™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 17A (Tc) | 15V | 208mOhm @ 8.5A, 15V | 3.6V @ 2.33mA | 24 nC @ 15 V | +15V, -4V | 632 pF @ 1000 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
|
C3M0160120K1MOSFET N-CH 1200V 17.9A TO247-4L Wolfspeed, Inc. |
229 | - |
|
Datasheet |
- | TO-247-4 | Bulk | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 17.9A (Tc) | 15V | 208mOhm @ 8.5A, 15V | 3.8V @ 2.33mA | 32 nC @ 15 V | +19V, -8V | 730 pF @ 1000 V | - | 103W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
